Hardware-based Local Controller

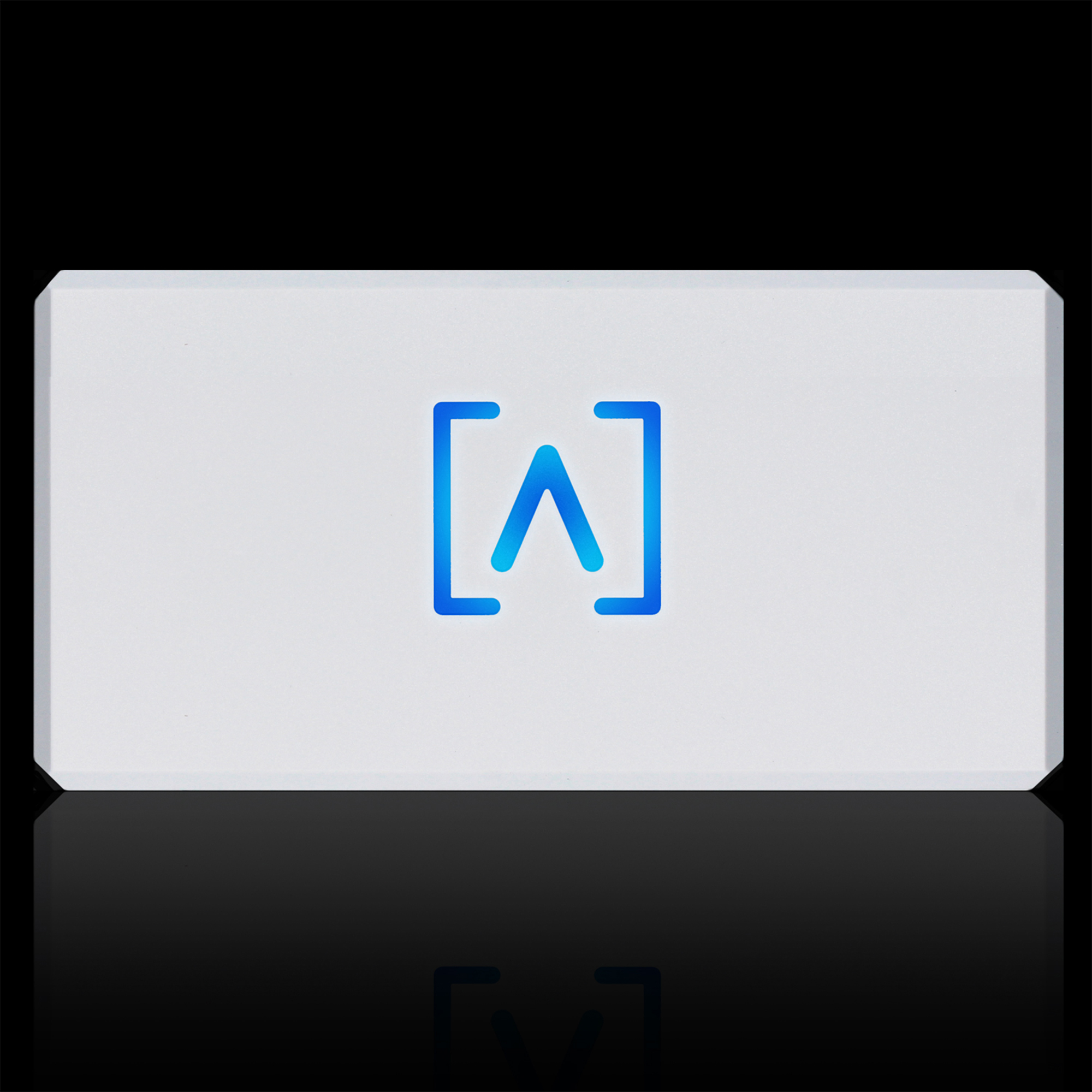

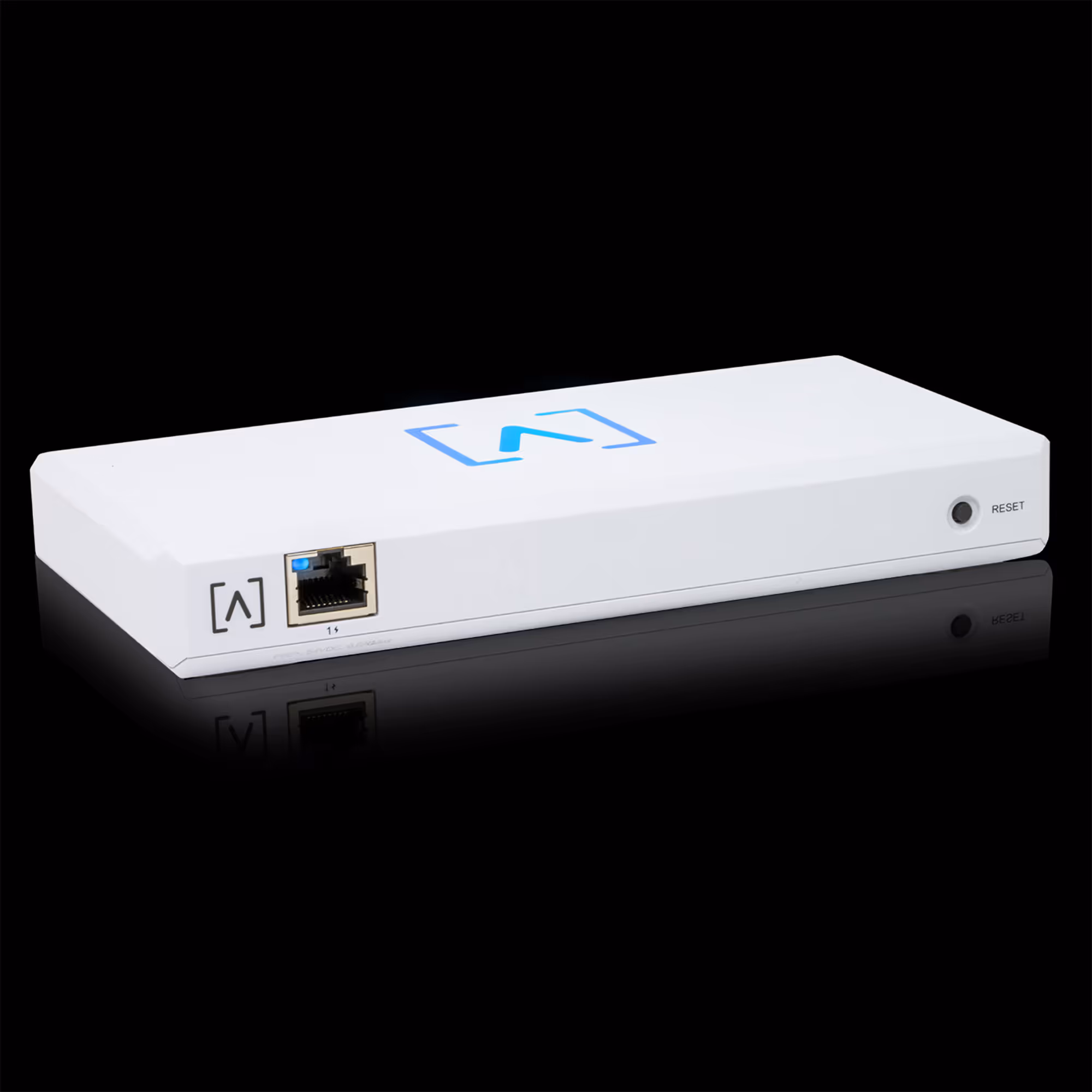

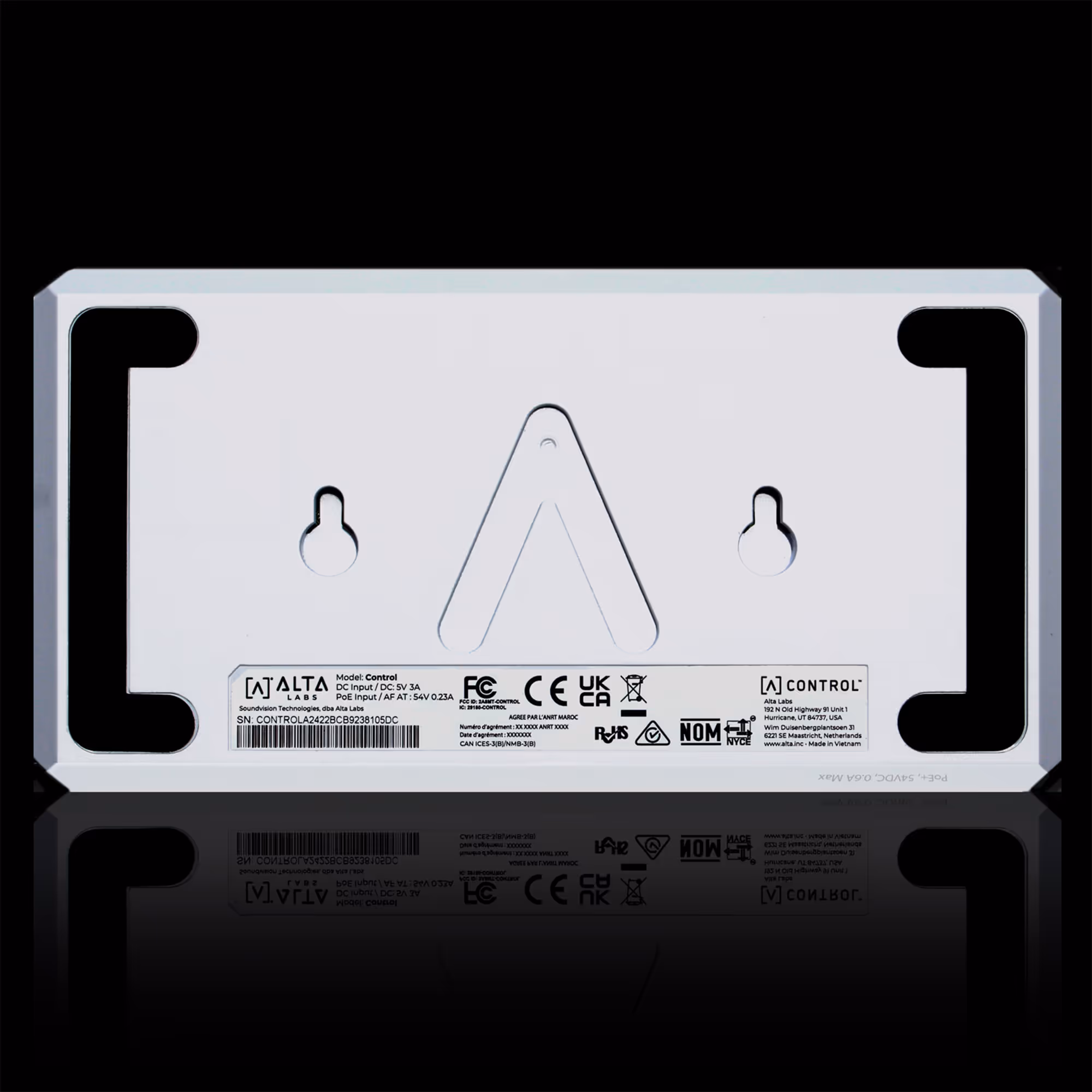

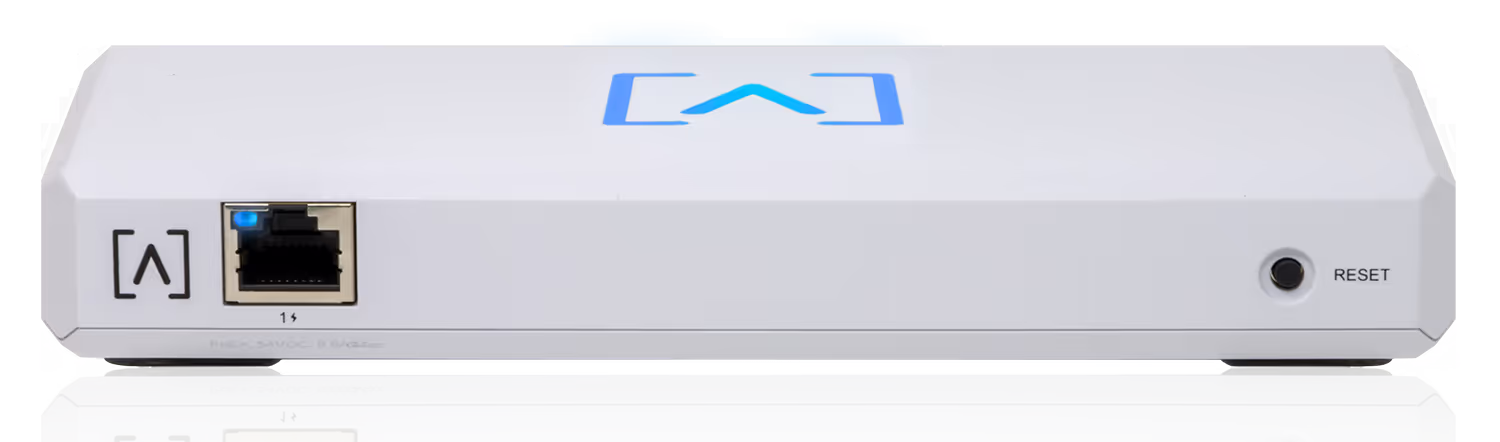

Product Photos
Features Overview
Backup and Restore Functionality
Mobile App
AltaPass™ Multi-Password Technology
SSID Broadcasting Flexibility
Can Manage Up To 1,000 Alta Labs Devices
Internet Access Schedule
Advanced Filtering - DPI Engine*
Hotspot Functionality
On-The-Fly Changes and Scanning

Intuitive and Easy to Use

Control provides an intuitive and easy-to-use management interface for Alta Labs access points, switches, and routers.

Deploy and manage multiple sites quickly and easily. Add, delete, or rename sites instantly. Toggle between sites from a site selection drop-down. Each site contains its own data set.

Mobile App

Monitor and manage your networks from the convenience of your mobile device using the Alta Networks app. Sign up for an Alta Labs account using just your name, email, and password or sign in using your Google or Apple account.
Learn More

AltaPass™ Multi-Password Technology

AltaPass is Alta Labs’ unique patented functionality that allows clients to connect to the same wireless network SSID using different passwords. Clients are provided with different network and internet access levels based on the password used to connect to the network.

When a password is created, select from one of the predefined standard use cases. The password can then be associated with a specific upload or download rate, a VLAN, or set to bypass the filtering rules, and the hotspot functionality, or to ignore the schedule.
  • Standard/Small - Typical network with less than 100 WiFi clients/devices
  • Large - Optimized for hundreds to thousands of WiFi clients/devices
  • IoT - Restricted to Internet and local incoming connections only
  • Internet only - Restricted to Internet only
  • Guest - Restricted to Internet and IoT devices
Learn More

Advanced Filtering - DPI Engine

The Alta Labs access points have a powerful built-in Deep Packet Inspection (DPI) engine.

By incorporating this feature directly in the access points, there is no need to purchase additional hardware to take advantage of this powerful tool.
  • Restrict access to websites, applications, or application types. Filter settings are easily applied in the Alta Labs web management interface.
  • Select applications or application types in the Block Applications drop-down menu.
  • Block websites by typing in their domain names in the Block Domains field.

Wireless Network Color Coding

Patent pending functionality that allows you to assign groups to wireless SSIDs and then assign membership to wireless access points.

On-The-Fly Changes and Scanning

  • Configuration changes do not require a reboot of your network. Changes can be made without taking your network down.
  • Scan your AP environment without disrupting your WiFi network.

Hotspot Functionality

Built-in functionality to create your own local hotspot with a logo, title page, terms of service, and a final landing page.

You also have the option to redirect to an external captive portal.

SSID Broadcasting Flexibility

In addition to standard functionality such as hiding your SSID, you can continue broadcasting your SSID during a “scheduled off” event.

This provides network admins with the ability to grant users additional time on the network. A user can request access via a captive portal displayed when they try to access the network.

Status Snapshots

View upload and download throughput with a visual timeline on the dashboard for each AP displayed along with the number of connected devices, average processor load, channel load, and average connected devices.

Select a snapshot of the last minute, last hour, last two days, or last two months.

Customizable Dashboard

Customize your dashboard with the information you want to see: IP address, Load, number of devices, MAC address, firmware version, wireless network color assignment, and real-time status details. Details are sortable by column.

Device Cards

Easily view connection details and configure your access points or client connections by clicking the device icon.
Mecánico
Dimensiones
25.7 x 91 x 180 mm (1 x 3.6 x 7.1")
Peso
.38 kg (.83 lbs)
Tipo de Material
Plástico moldeado por inyección
Acabado del Material
Matte
Color
Blanco
Puertos
Interfaz de Red
Ethernet, Bluetooth
Interfaz de Administración
(1) Puerto RJ45 GbE
Leds
Red
Naranja: 10/100 Mbps, Azul: 1000 Mbps
Hardware
Procesador
Qualcomm de cuatro núcleos a 2.2 GHz
Botón
Restablecimiento de fábrica
Bluetooth
Sí, configuración
Alimentación
Método de Alimentación
PoE+ or USB 5V
Rango de Voltaje Soportado
2.4–57V CC para PoE, 4.75V a 5.25V para USB
Consumo de Energía
8W máx., 5W típico
Entorno
Montaje
Pared, Escritorio
Temperatura de Funcionamiento
-5 a 50 °C (23 a 122 °F)
Humedad de Funcionamiento
5 a 95% sin condensación
Certificaciones
CE, FCC, IC
Nube
Hardware
Descarga
Costo/Tarifa de licencia
Incluido con la compra
de hardware de Alta Labs
$149
Solución de hardware y software
$49
Tarifa de licencia única
Accesibilidad
Global
Local*
Local*
Facilidad de instalación
Fácil
Media
Avanzada
Fiabilidad
99.99 % de tiempo activo
Dependiente de la red**
Dependiente de la red**
Seguridad



Compatibilidad con proxy inverso
N/D
Bluetooth para configuración sencilla
No
Máximo de dispositivos conectados
Sin límite
1000
Depende del host
AltaPass
Notificaciones de desconexión
Permisos avanzados por sitio
Actualizaciones automáticas
* El hardware y la opción de descarga pueden ser accesibles globalmente si están configurados correctamente.
** El hardware y la descarga dependerán de la alimentación eléctrica en el sitio y de la arquitectura de red. La opción de descarga será tan confiable como el servidor en el que se instale.
