48-PORT ENTERPRISE SWITCH WITH FULL POE
Product Photos

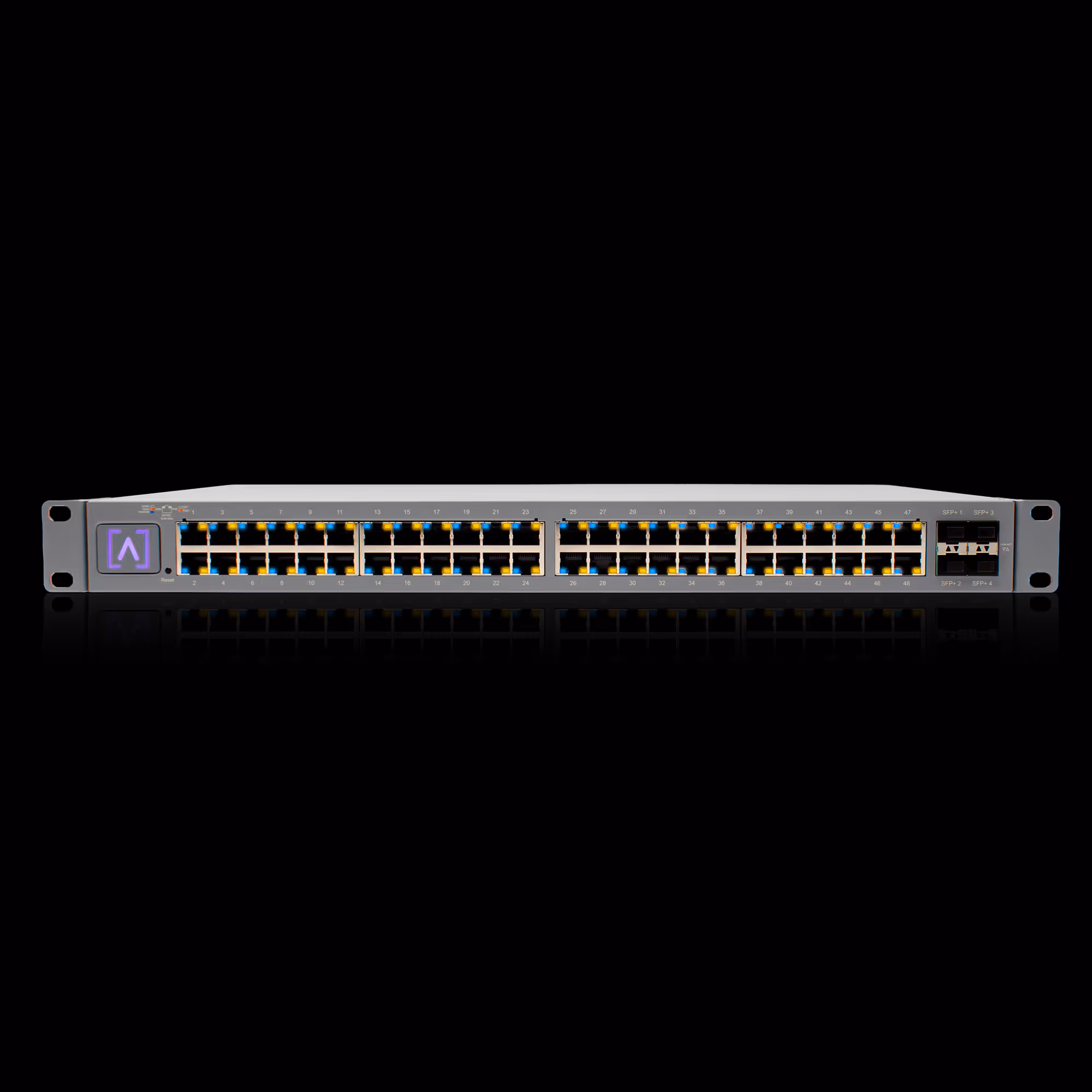

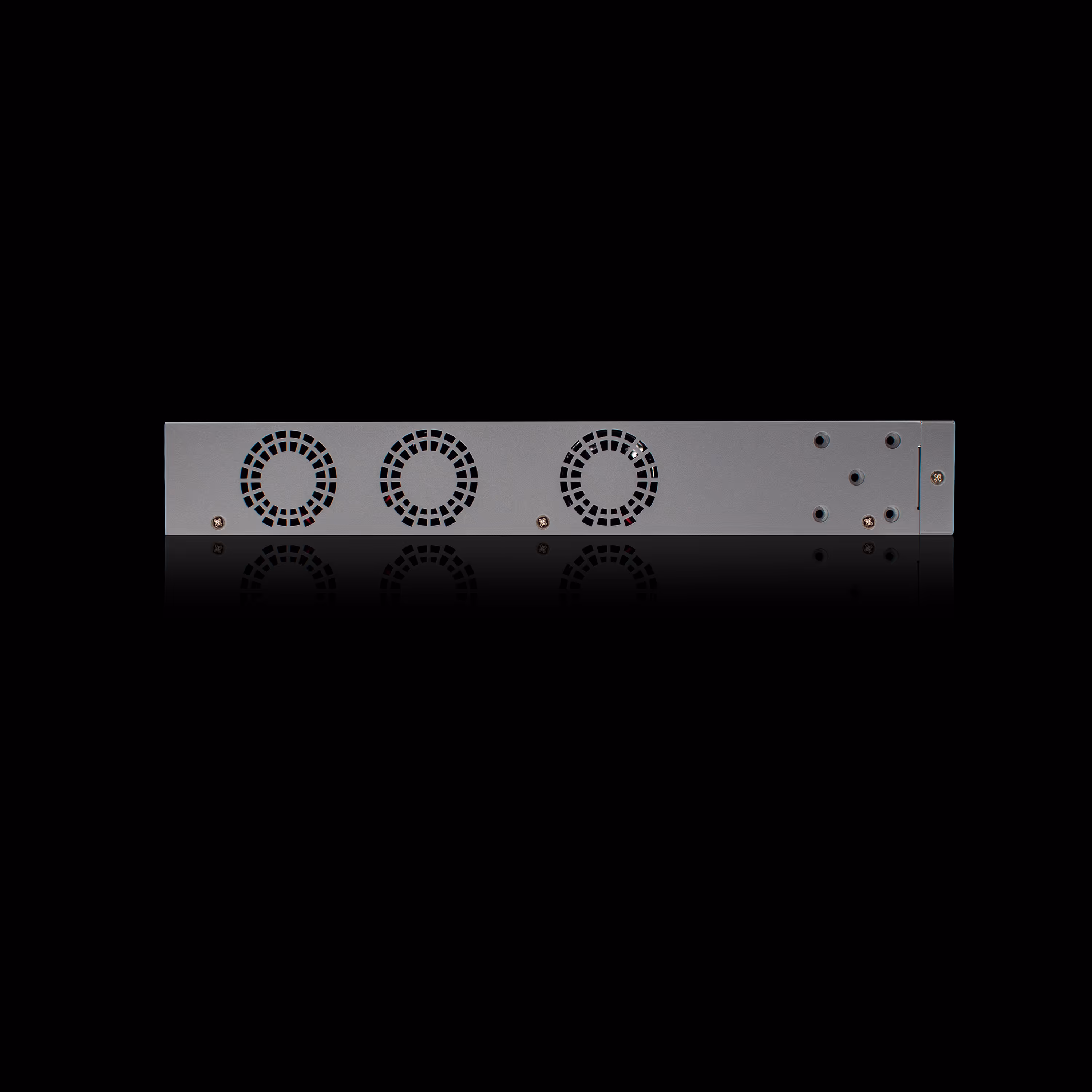

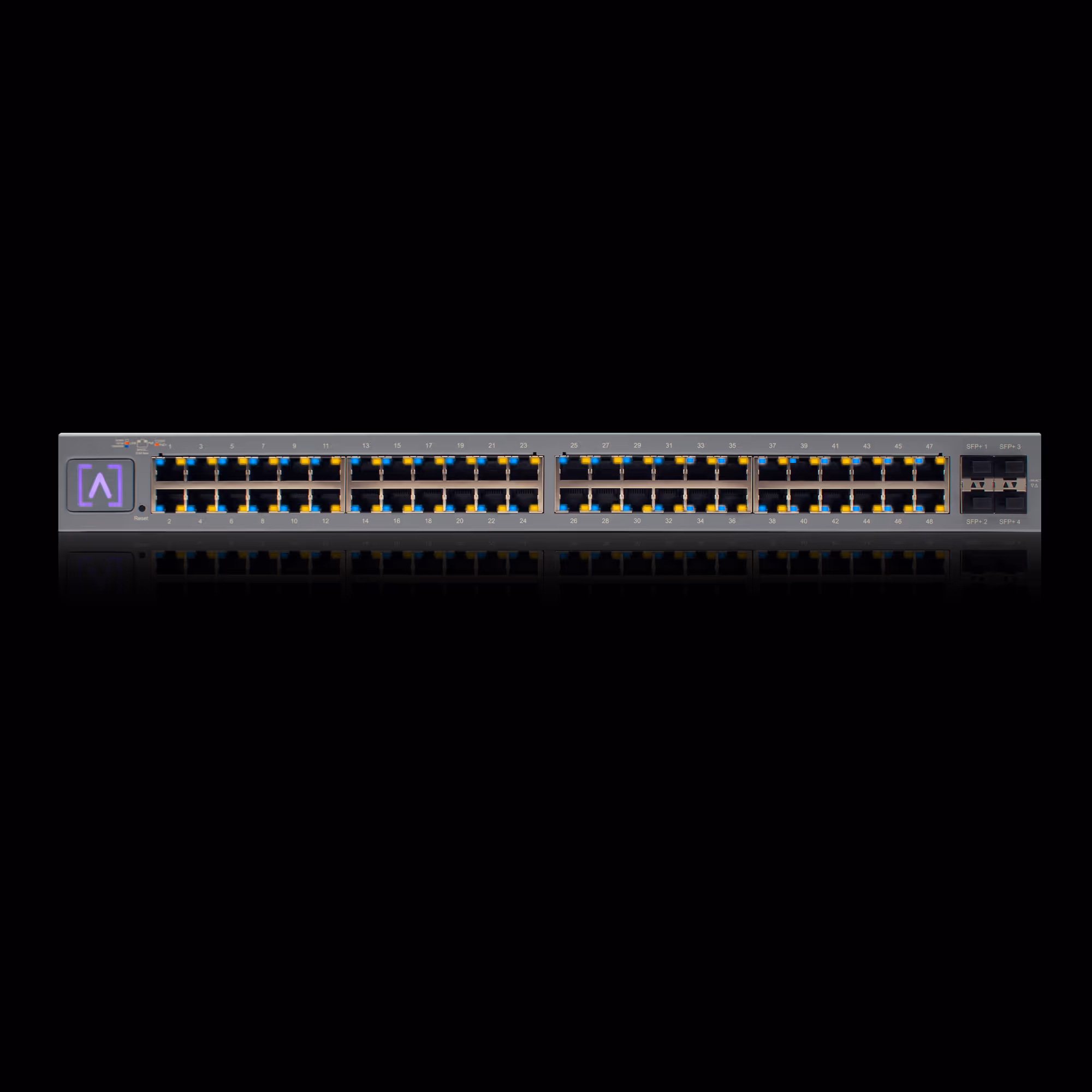

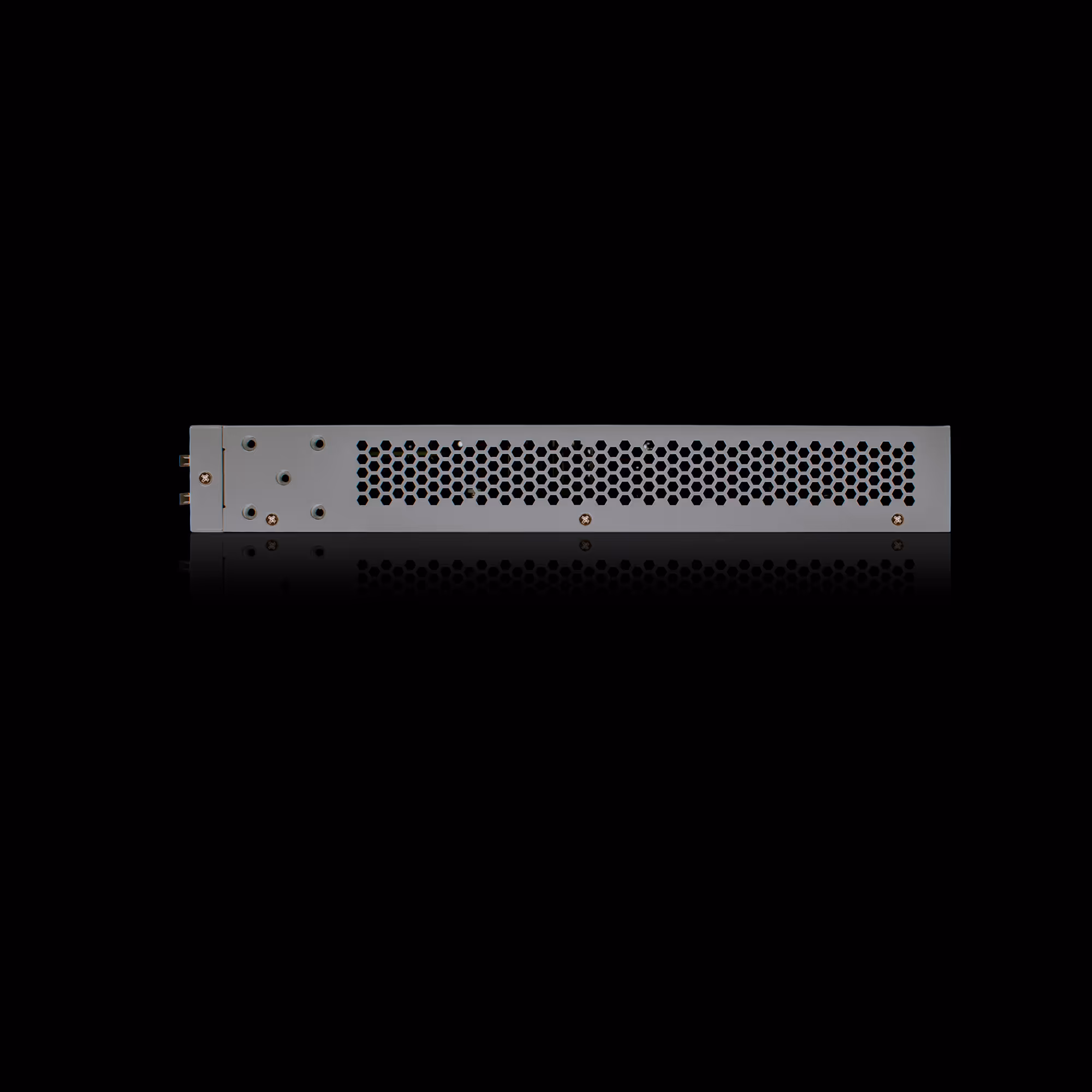

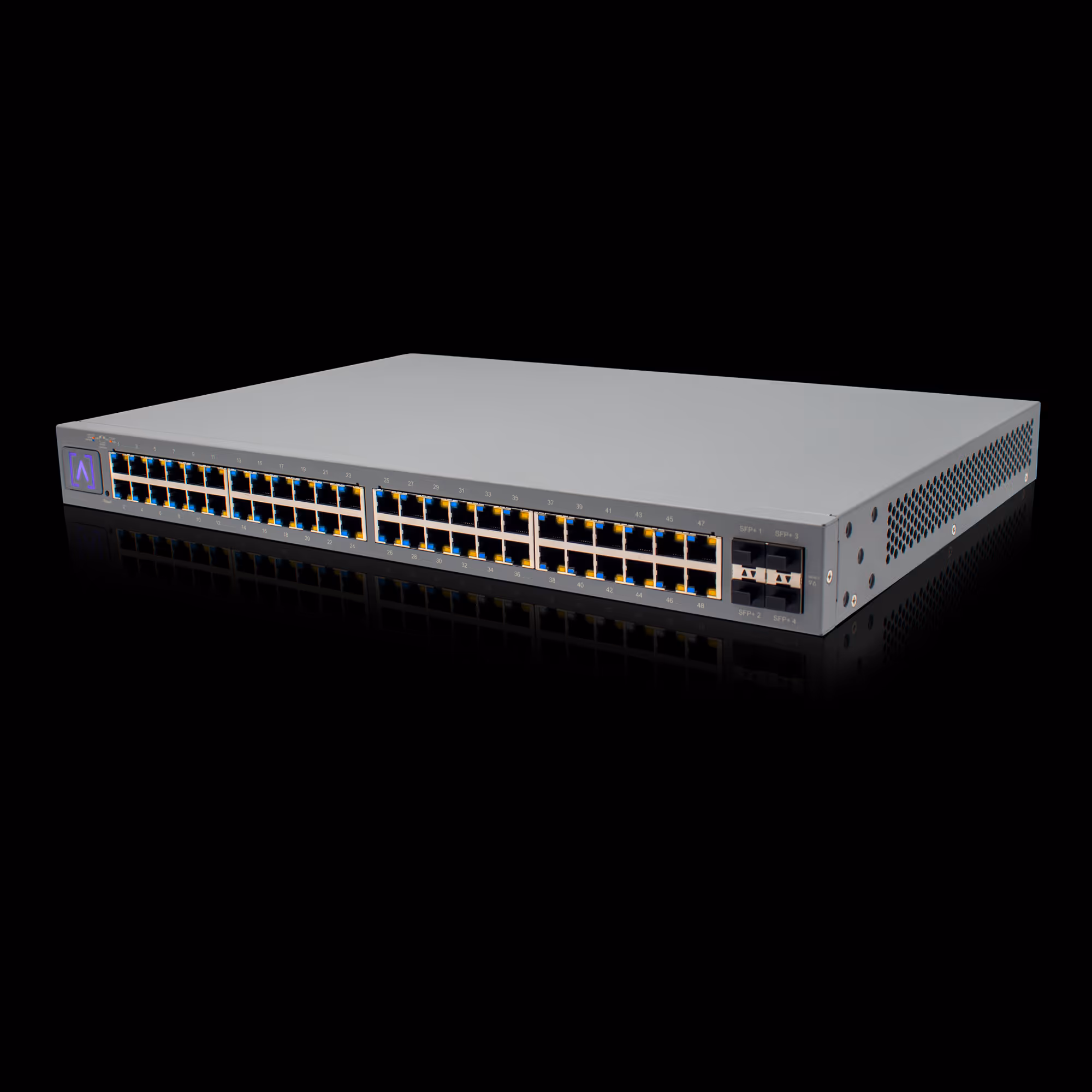

Angled view

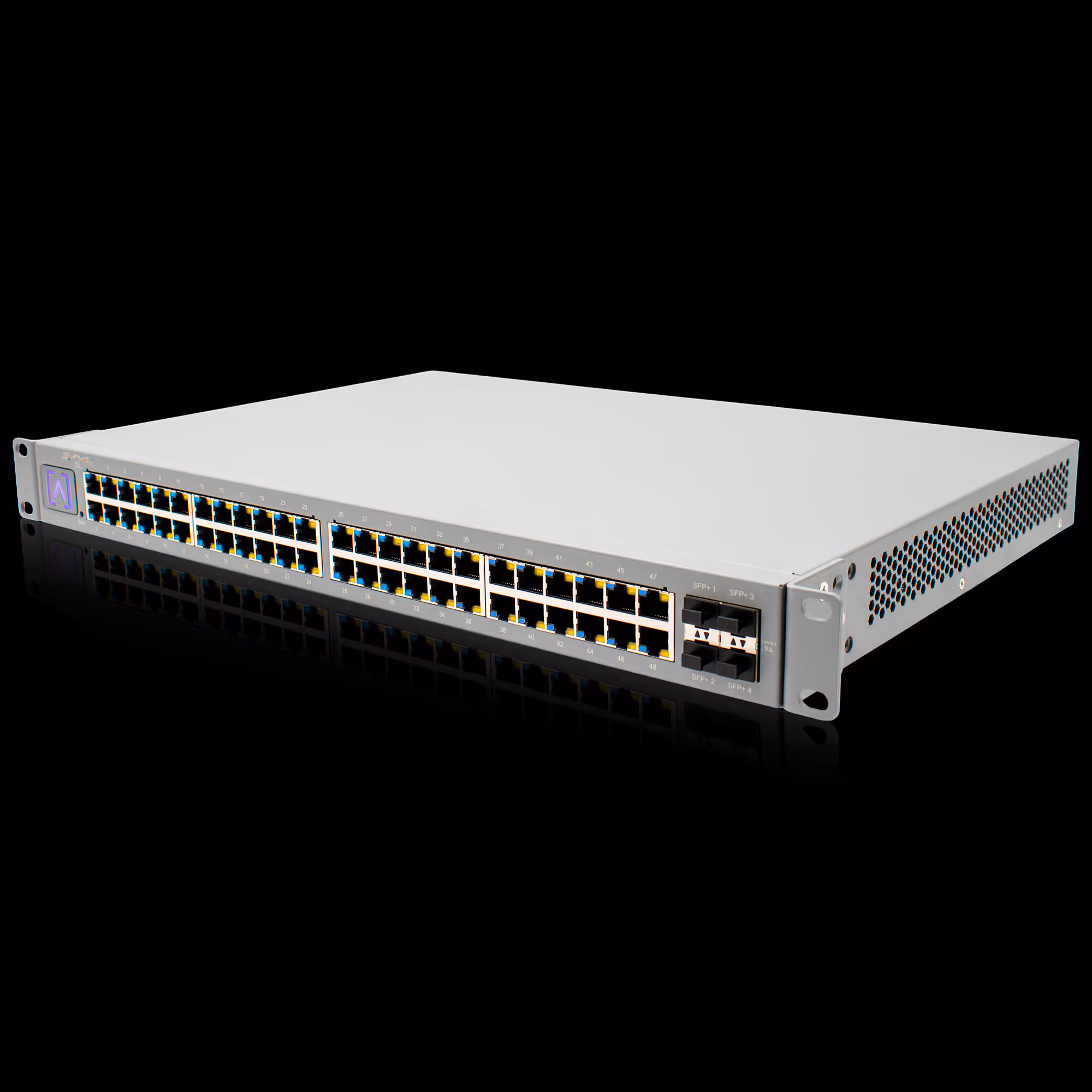

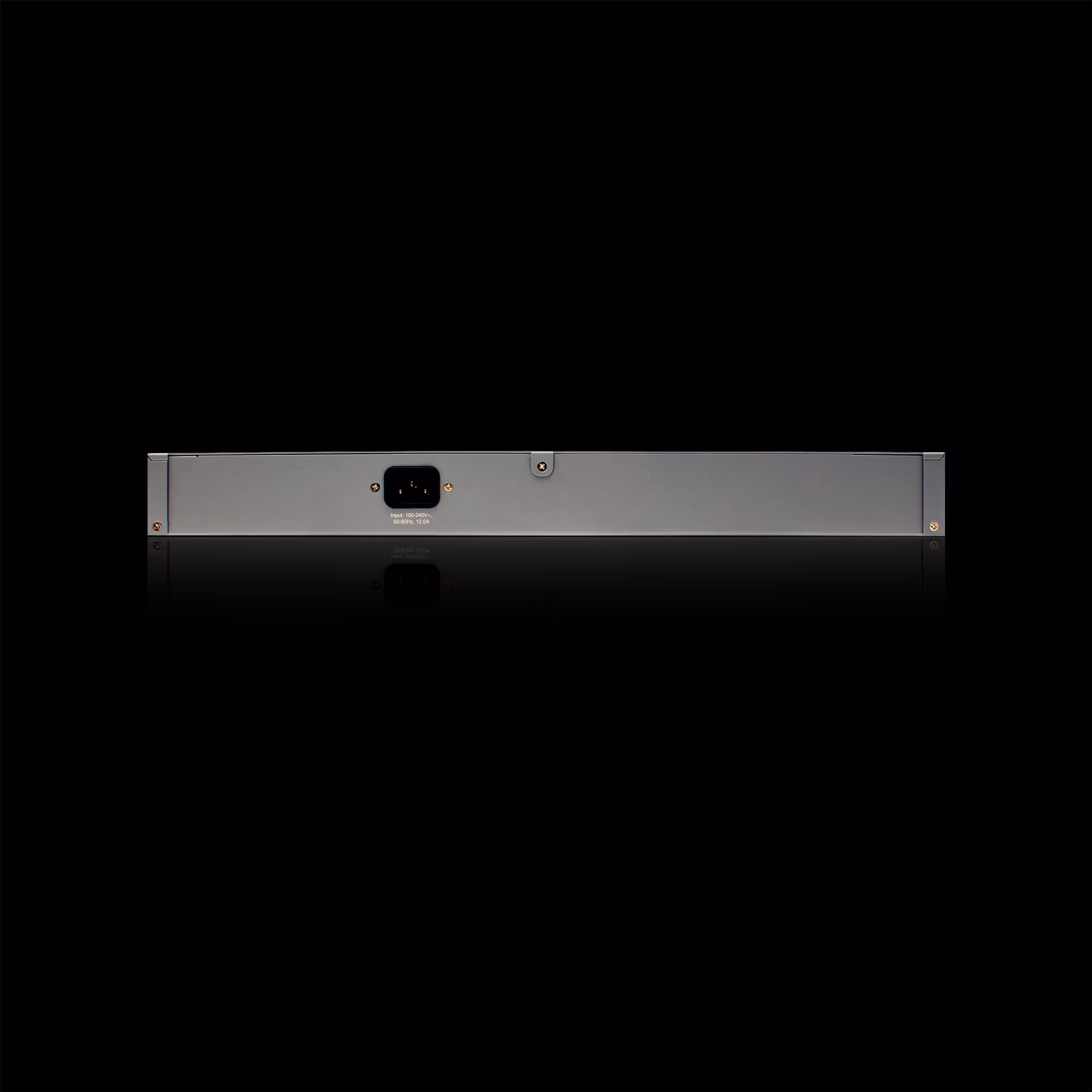

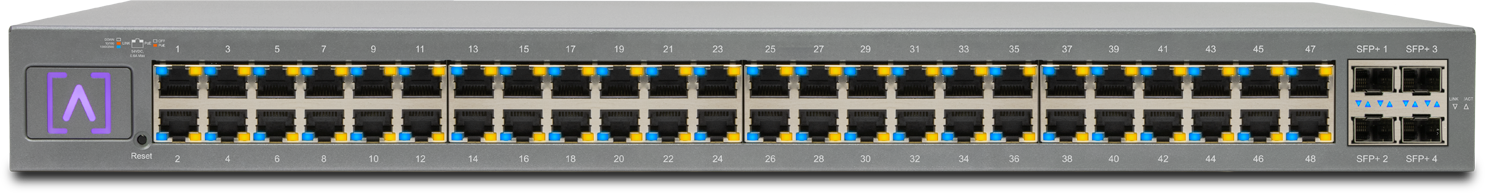

Angled view thumbnail Front view thumbnail Back view thumbnail Right side view thumbnail Left side view thumbnail Angled with brackets thumbnail Front with brackets thumbnail
Features Overview
Full Power Over Ethernet
VLAN Stacking
740W PoE Budget
Scalable Cloud-Based Management
(4) 10 Gbps SFP+ Ports
Mobile App
(16) 2.5 Gbps Ethernet Ports
Egress and Ingress Rate Limiting
(32) 1 Gbps Ethernet Ports
IGMP Snooping
Bluetooth Setup
802.1X Authentication
Datasheet
Quick Start Guide
Where to Buy

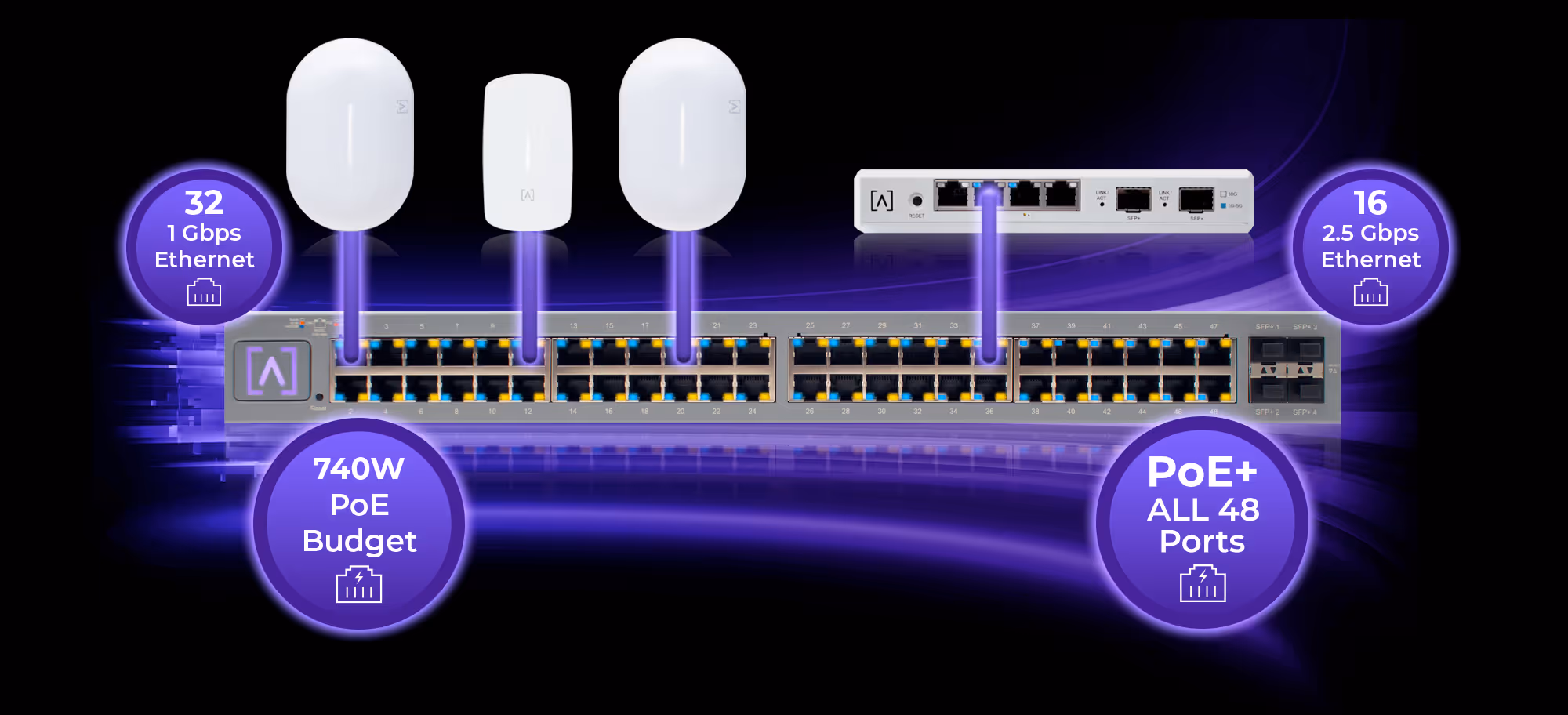

Full PoE+ Connectivity on ALL Ports

The Alta Labs S48-APOE features full PoE+ connectivity on all 48 ports. It features a PoE budget of 740 watts and provides up to 30 watts of power per port.

The first 32 Ethernet ports support up to 1 Gbps connections, while the last 16 Ethernet ports support up to 2.5 Gbps connections.

4 SFP+ Ports Supporting Up to 10 Gbps Speeds

The S48-APOE switch provides four SFP+ ports for high-capacity fiber or copper connections of 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps.

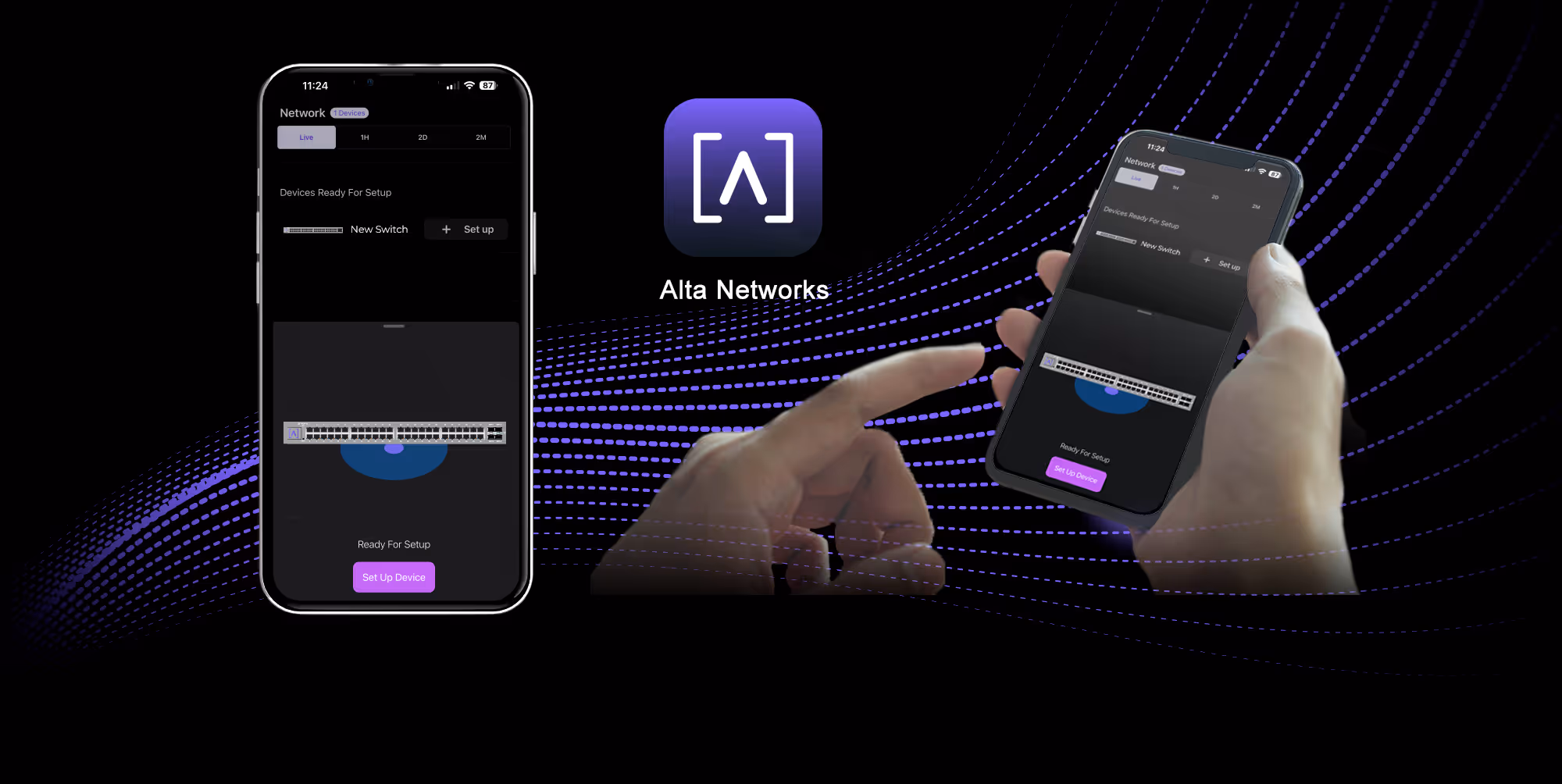

Bluetooth Setup

The Alta Labs switches include Bluetooth functionality allowing for seamless setup using the Alta Networks mobile app.

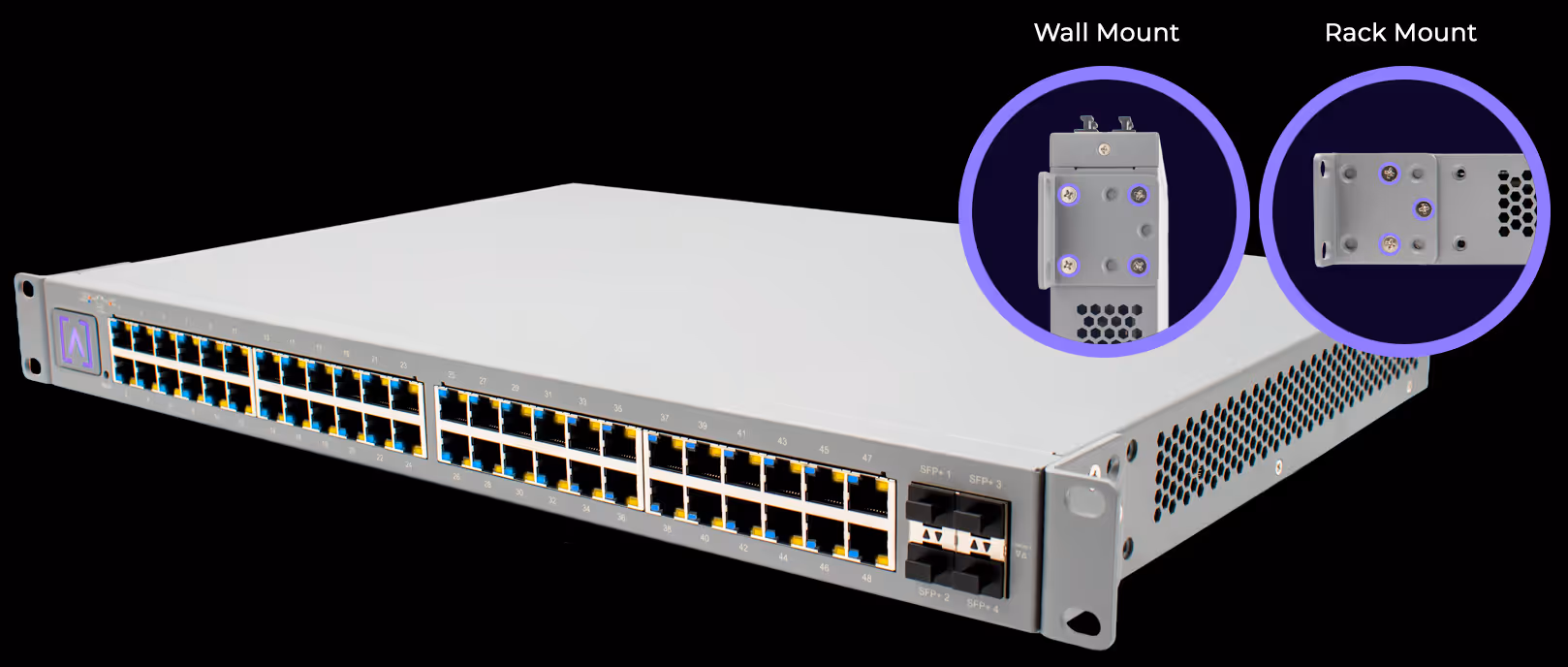

Mounting Versatility

Alta Labs switches include rack ears that can be positioned for use in a rack or for mounting on a wall.

Scalable Cloud-Based Management

Alta Labs provides an intuitive and easy-to-use cloud-based management interface to manage Alta Labs devices. The platform is included with your Alta Labs hardware purchase. Designed for optimum scalability using a high-availability architecture for the ultimate in convenience and worldwide accessibility.
Total Ports
1 Gbps Ports
2.5 Gbps Ports
PoE+ Ports
PoE Budget
SFP/SFP+
Bluetooth
8
8
–
4
60 W
–
16
16
–
8
120 W
Up to 1 Gbps
24
24
–
16
240 W
Up to 10 Gbps
48
32
16
48
740 W
Up to 10 Gbps
Specifications
Resources
Mechanical
Dimensions
440 x 310 x 44 mm (17.32 x 12.20 x 1.73")
Weight
4.99 kg (11 lbs)
Material Type
SGCC
Material Finish
Powder coat - Matte
Color
Metalic gray
Ports
Interface ports
(36) 10/100/1000 Mbps,
(16) 10/100/1000/2500 Mbps
SFP/SFP+
(4) SFP+
Switching Capacity
240 Gbps
Non-blocking Throughput
120 Gbps
Forwarding Rate
178.6 Gbps
PoE Budget/Max
740 Watts
PoE Supply
30 Watts per port
Per Port PoE
(48) 802.3at PoE+
Non-PoE Ports
None

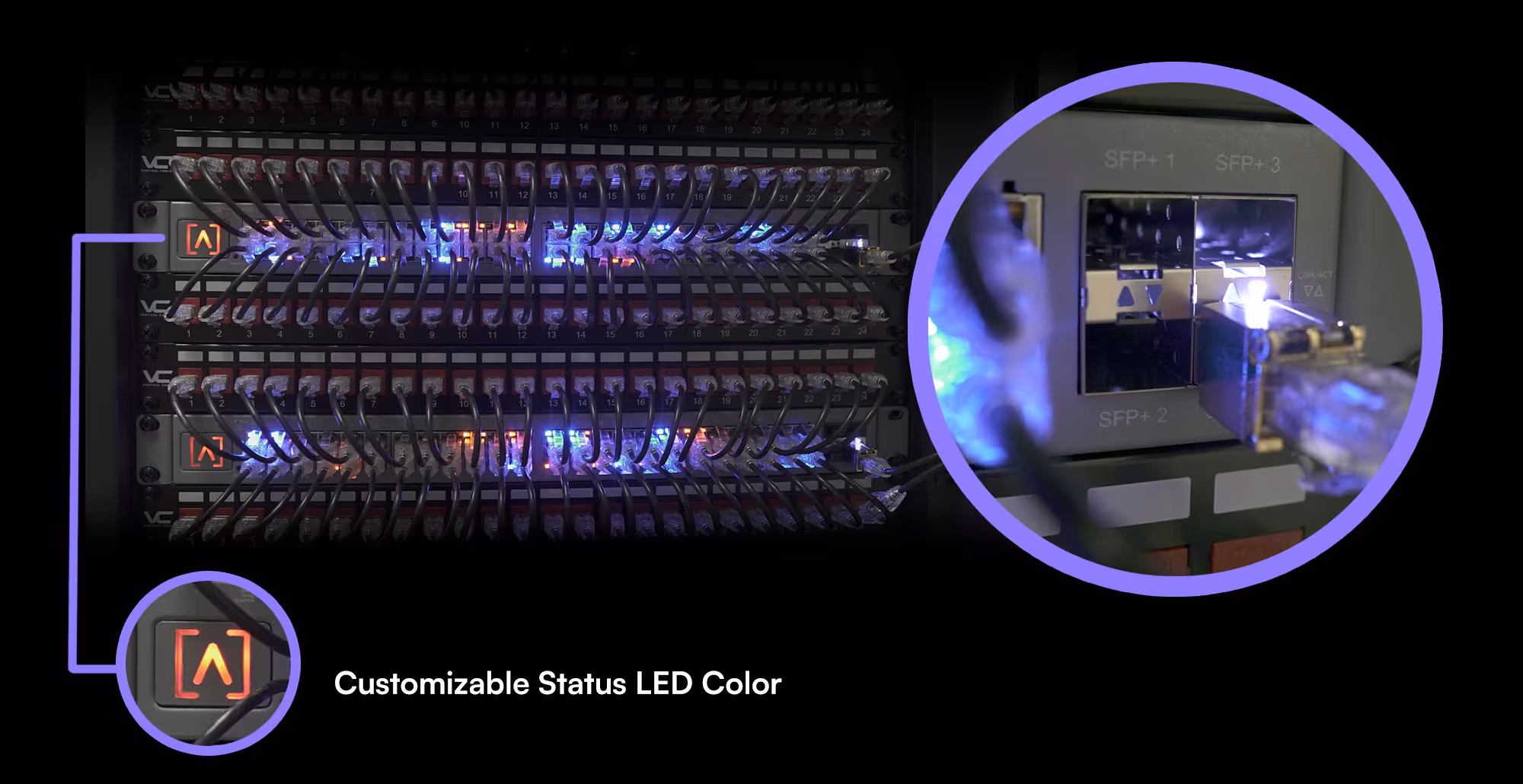

Leds
PoE Orange
Orange
Network
Blue: 10/100/1000 Mbps, White: 2.5 Gbps
SFP/SFP+
Blue: 10/100/1000 Mbps
White: 2.5/ 5/10 Gbps
Hardware
Packet Buffer
16 Mbit
Mac Table Size
32K
Energy Efficient Ethernet
Yes
Management
Factory reset button
Band
2.4 GHz (For Bluetooth Setup)
Bluetooth Version
BLE
Total Power
7 dBm EIRP
Gain
2 dBi
Power
Idle Power Consumption
16 Watts
Max Power Consumption w/o PoE
68 Watts
Max Power Consumption Full PoE
890 Watts
Output
PoE+, 54VDC, 0.6A Max.
Power Supply
Universal AC, 100 - 240VAC 50-60Hz Internal
RJ45 Port Surge Protection
12kV for ESD - contact, 25kV for ESD - Air
Environmental
Mounting
Rackmount, Wallmount
Operating Temperature
-5 to 50° C (23 to 122° F)
Operating Humidity
10 to 90% Noncondensing
IP Rating
None
EMI Rating
Class A with 3 dB Margin
Cooling Fan
Yes
Certifications
CE, FCC, IC
Documentation
Quick Start Guide
Datasheet
